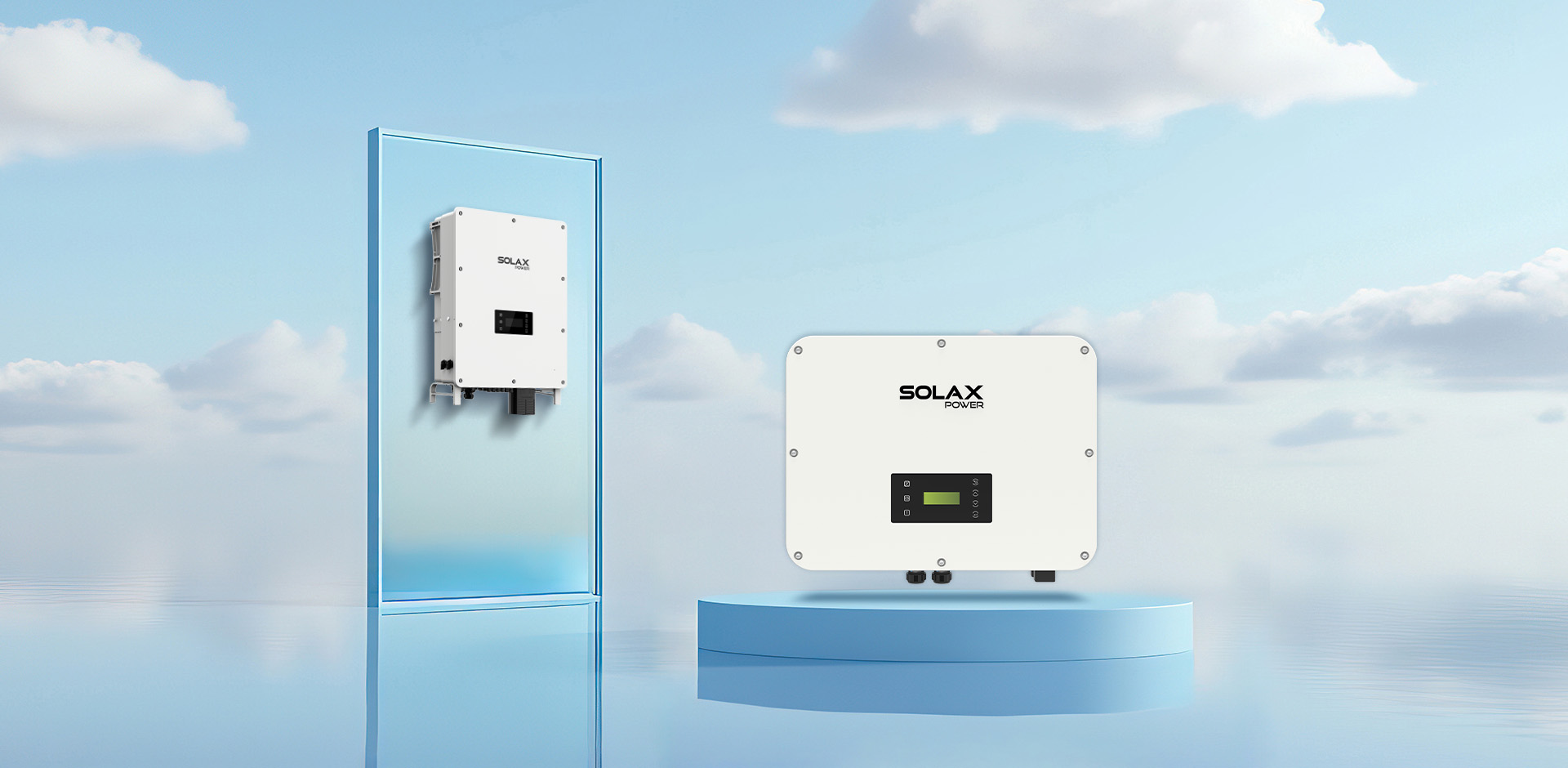

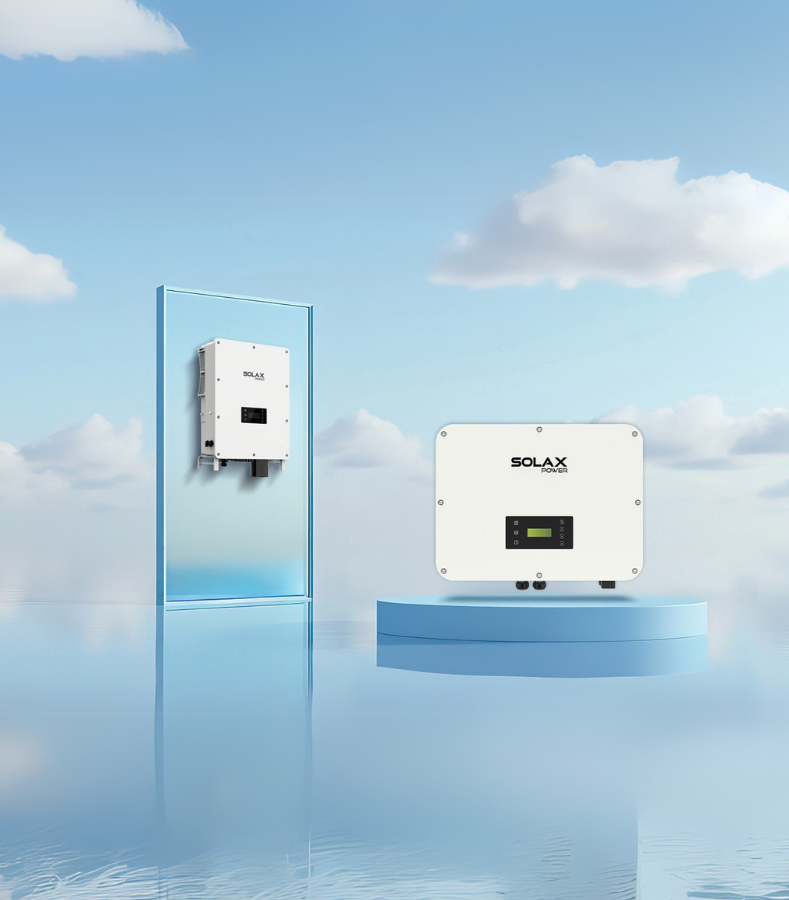

อินเวอร์เตอร์สำหรับการจัดเก็บพลังงานในธุรกิจและอุตสาหกรรม

พารามิเตอร์ผลิตภัณฑ์

•

  X3-ULT-15K

  • PV INPUT



    Max. recommended PV array power	30 kWp
    MPPT voltage range	160~950 V
    No. of MPP. trackers / strings per MPPT	2 / (2 / 2)
    Max. input current per MPPT	36 A / 36 A




  • AC INPUT & OUTPUT (ON-GRID)



    Rated output power	15000 W(AS4777 14999 W)
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V













  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Peak EPS output power	2 times of rated power, 10 s
    Switchover time	<10 ms




  • GENERAL

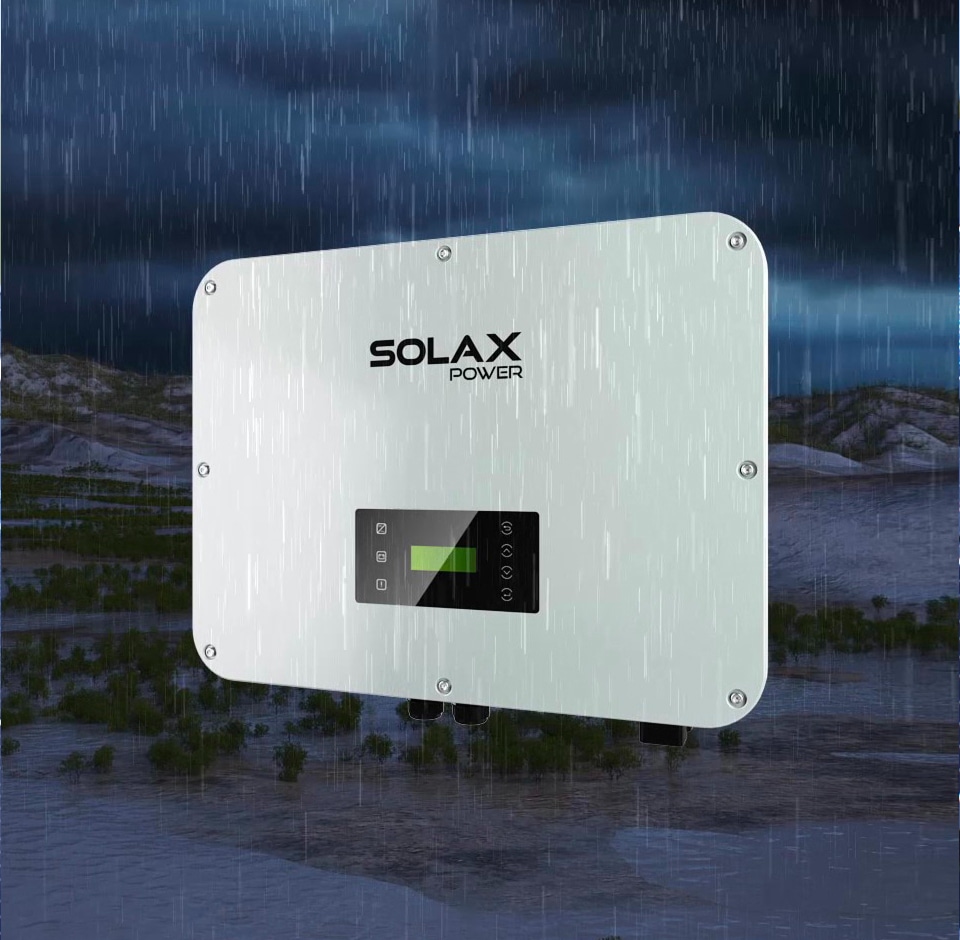

    Ingress protection	IP66
    Dimensions (W /H / D)	696x526x240 mm
    Net Weight	47 kg




•

  X3-ULT-15KP

  • PV INPUT



    Max. recommended PV array power	30 kWp
    MPPT voltage range	160~950 V
    No. of MPP. trackers / strings per MPPT	3 / (2 / 2 / 2)
    Max. input current per MPPT	36 A / 36 A  / 36 A




  • AC INPUT & OUTPUT (ON-GRID)



    Rated output power	15000 W(AS4777 14999 W)
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V













  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Peak EPS output power	2 times of rated power, 10 s
    Switchover time	<10 ms




  • GENERAL



    Ingress protection	IP66
    Dimensions (W /H / D)	696x526x240 mm
    Net Weight	47 kg




•

  X3-ULT-19.9K

  • PV INPUT



    Max. recommended PV array power	40 kWp
    MPPT voltage range	160~950 V
    No. of MPP. trackers / strings per MPPT	2 / (2 / 2)
    Max. input current per MPPT	36 A / 36 A







  • AC INPUT & OUTPUT (ON-GRID)



    Rated output power	20000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V













  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Peak EPS output power	2 times of rated power, 10 s
    Switchover time	<10 ms




  • GENERAL



    Ingress protection	IP66
    Dimensions (W /H / D)	696x526x240 mm
    Net Weight	47 kg




•

  X3-ULT-20K

  • PV INPUT



    Max. recommended PV array power	40 kWp
    MPPT voltage range	160~950 V
    No. of MPP. trackers / strings per MPPT	2 / (2 / 2)
    Max. input current per MPPT	36 A / 36 A







  • AC INPUT & OUTPUT (ON-GRID)



    Rated output power	20000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V













  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Peak EPS output power	2 times of rated power, 10 s
    Switchover time	<10 ms




  • GENERAL



    Ingress protection	IP66
    Dimensions (W /H / D)	696x526x240 mm
    Net Weight	47 kg




•

  X3-ULT-20KP

  • PV INPUT



    Max. recommended PV array power	40 kWp
    MPPT voltage range	160~950 V
    No. of MPP. trackers / strings per MPPT	3/ (2 / 2 / 2)
    Max. input current per MPPT	36 A / 36 A / 36 A







  • AC INPUT & OUTPUT (ON-GRID)



    Rated output power	20000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V













  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Peak EPS output power	2 times of rated power, 10 s
    Switchover time	<10 ms




  • GENERAL



    Ingress protection	IP66
    Dimensions (W /H / D)	696x526x240 mm
    Net Weight	47 kg




•

  X3-ULT-25K

  • PV INPUT



    Max. recommended PV array power	50 kWp
    MPPT voltage range	160~950 V
    No. of MPP. trackers / strings per MPPT	3 / (2 / 2 / 2)
    Max. input current per MPPT	36 A / 36 A / 36 A







  • AC INPUT & OUTPUT (ON-GRID)



    Rated output power	25000 W(VDE4105 24900 W)
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V













  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Peak EPS output power	2 times of rated power, 10 s
    Switchover time	<10 ms




  • GENERAL



    Ingress protection	IP66
    Dimensions (W /H / D)	696x526x240 mm
    Net Weight	47 kg




•

  X3-ULT-30K

  • PV INPUT



    Max. recommended PV array power	60 kWp
    MPPT voltage range	160~950 V
    No. of MPP. trackers / strings per MPPT	3 / (2 / 2 / 2)
    Max. input current per MPPT	36 A / 36 A / 36 A







  • AC INPUT & OUTPUT (ON-GRID)



    Rated output power	30000 W (AS4777 29999 W,VDE4105 29900 W)
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V













  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Peak EPS output power	2 times of rated power, 10 s
    Switchover time	<10 ms




  • GENERAL



    Ingress protection	IP66
    Dimensions (W /H / D)	696x526x240 mm
    Net Weight	47 kg
